GFiber Drop Bury Field Guide — Onsite Cable Corp

1. Depth Photo Technique — The Ruler Sandwich

The Rule: Horizontal ruler must be IN FRONT of the vertical ruler and touching it. Measure from the top of the fiber or conduit — NOT from the ground. Minimum depth is 7 inches.

✅ PASS

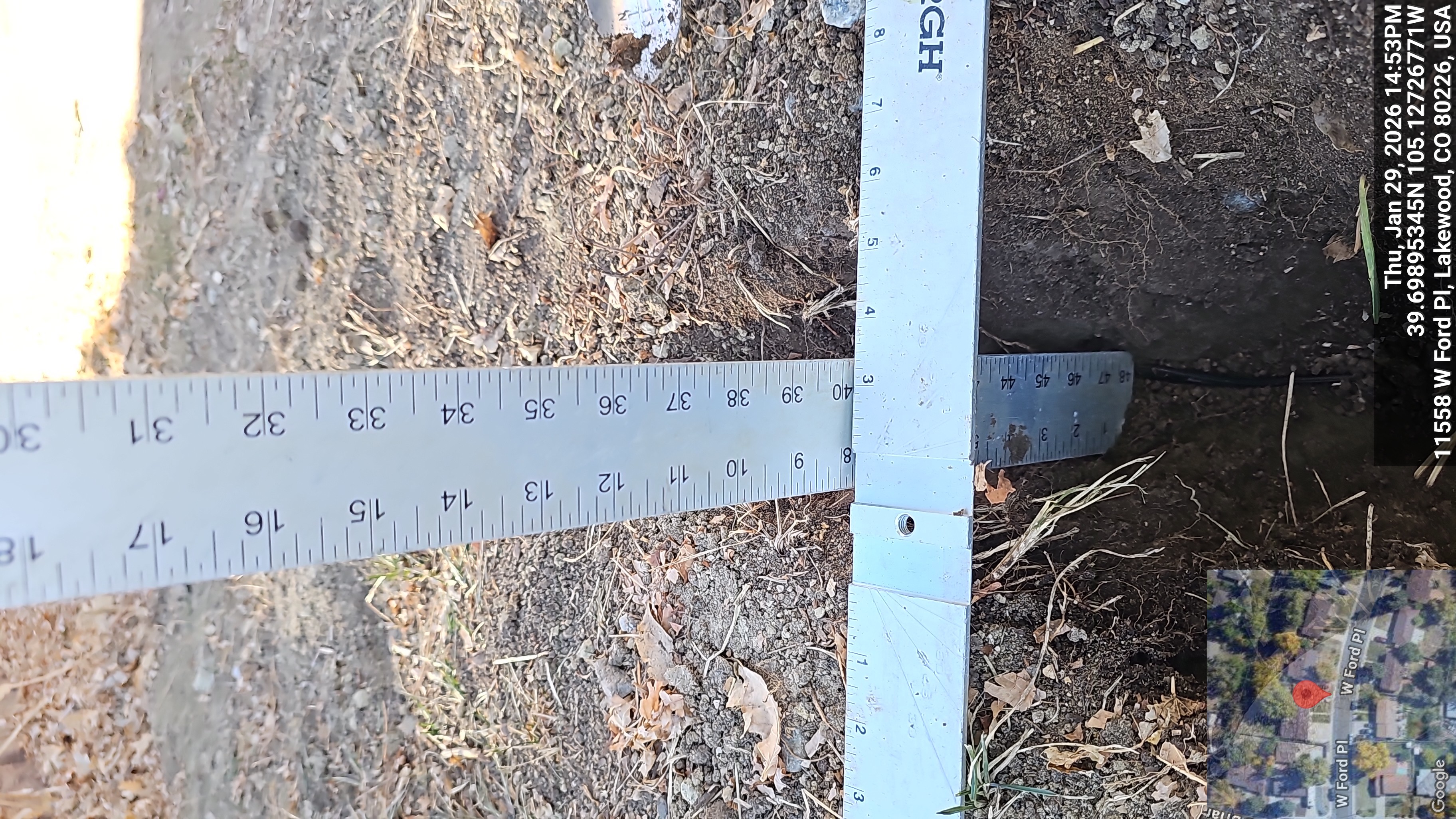

Ruler in front. Depth clearly meets 7" requirement.

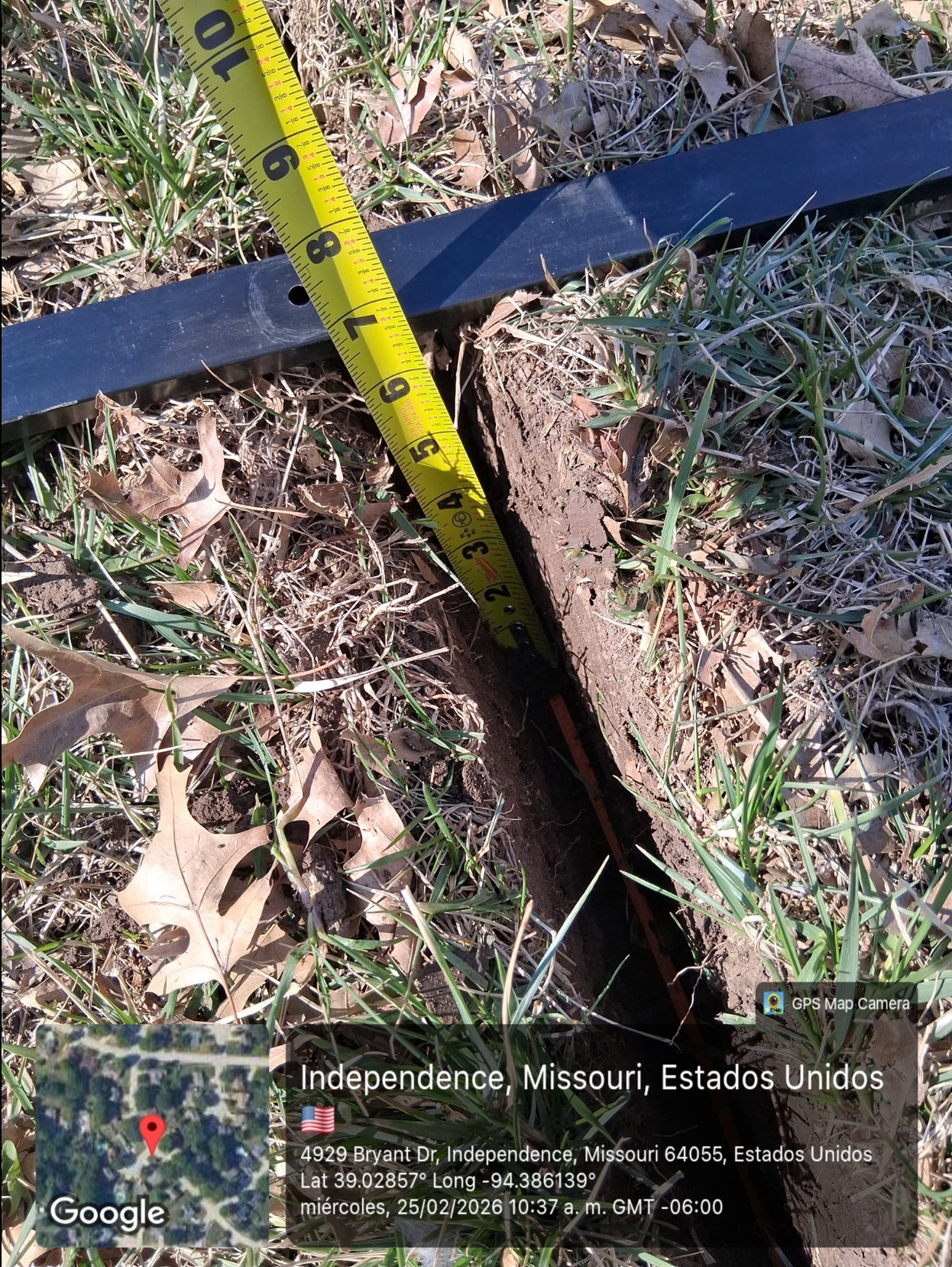

❌ DOUBLE FAIL
1. Ruler is behind vertical.
2. Depth is below 7".

⚠️ Pro-Tip: Ensure Geo-Data overlay does not block markings.

2. Required Open-Trench Photos Phase 1 — 9 Photos

Depth Rule: All 3 depth photos must show >7" depth measured from the top of the fiber.

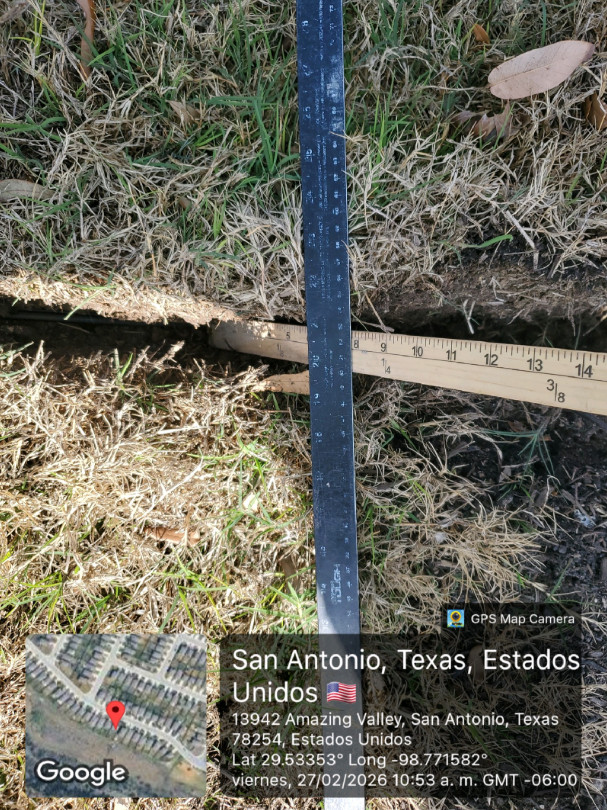

📍 Depth: Front of Run

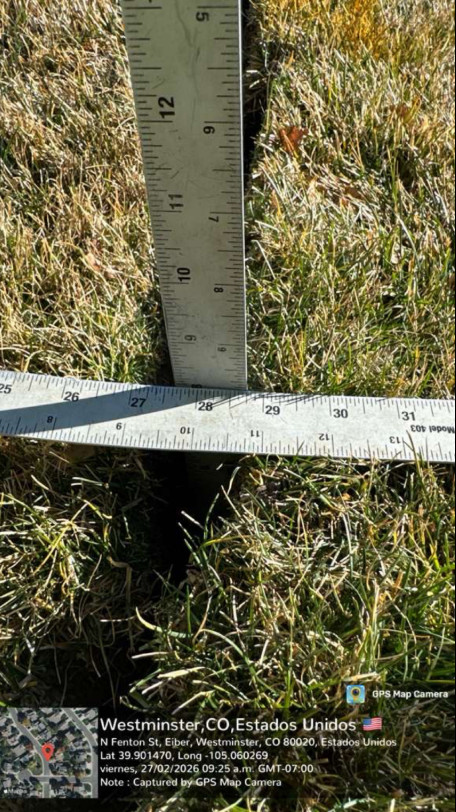

📍 Depth: Mid Run

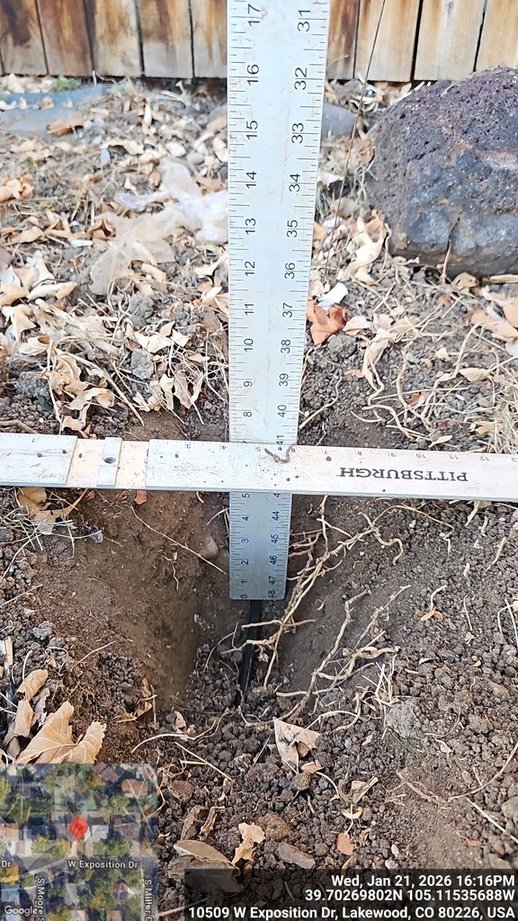

📍 Depth: End of Run

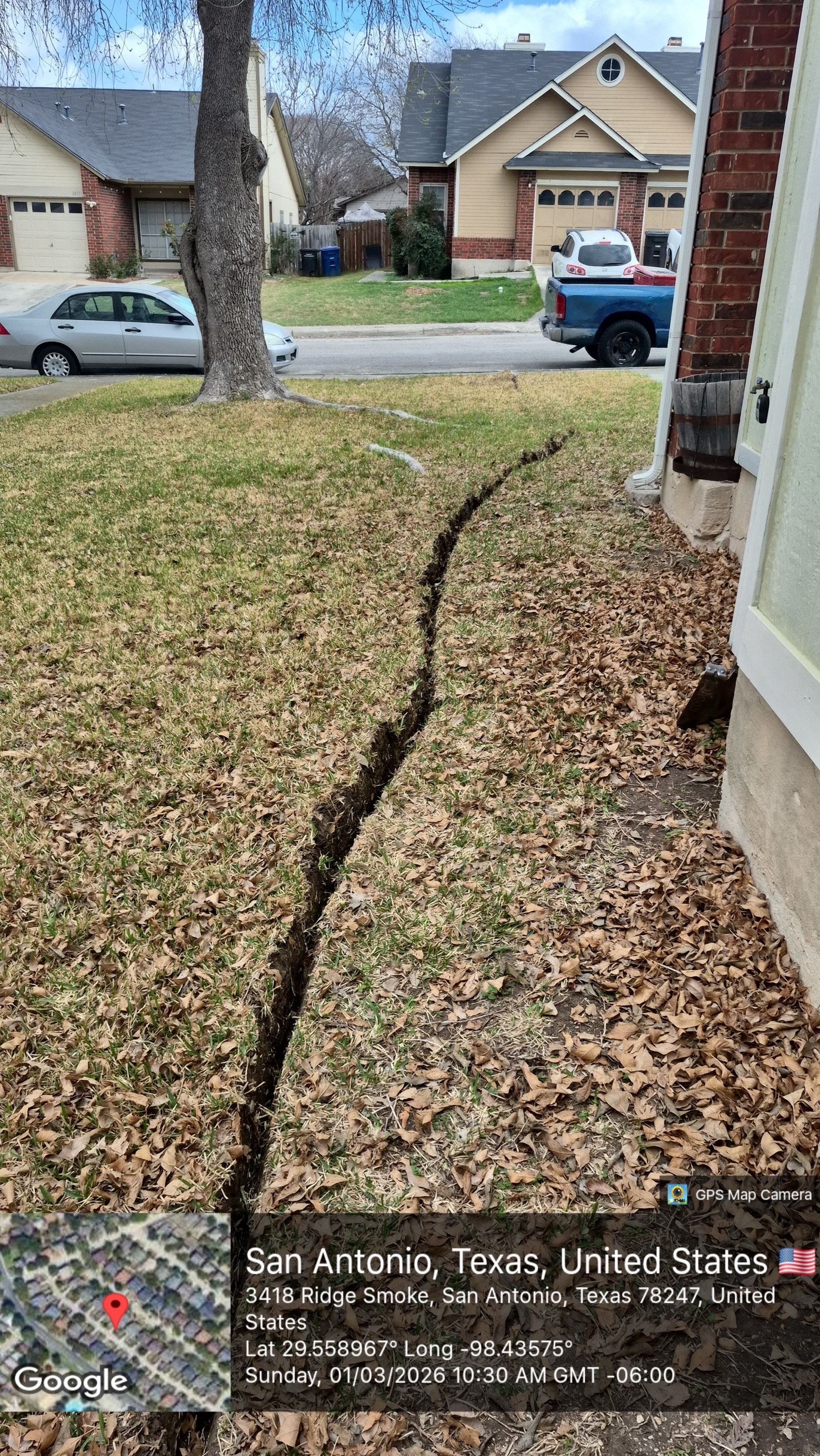

🏠→🛣️ Trench: House to Street

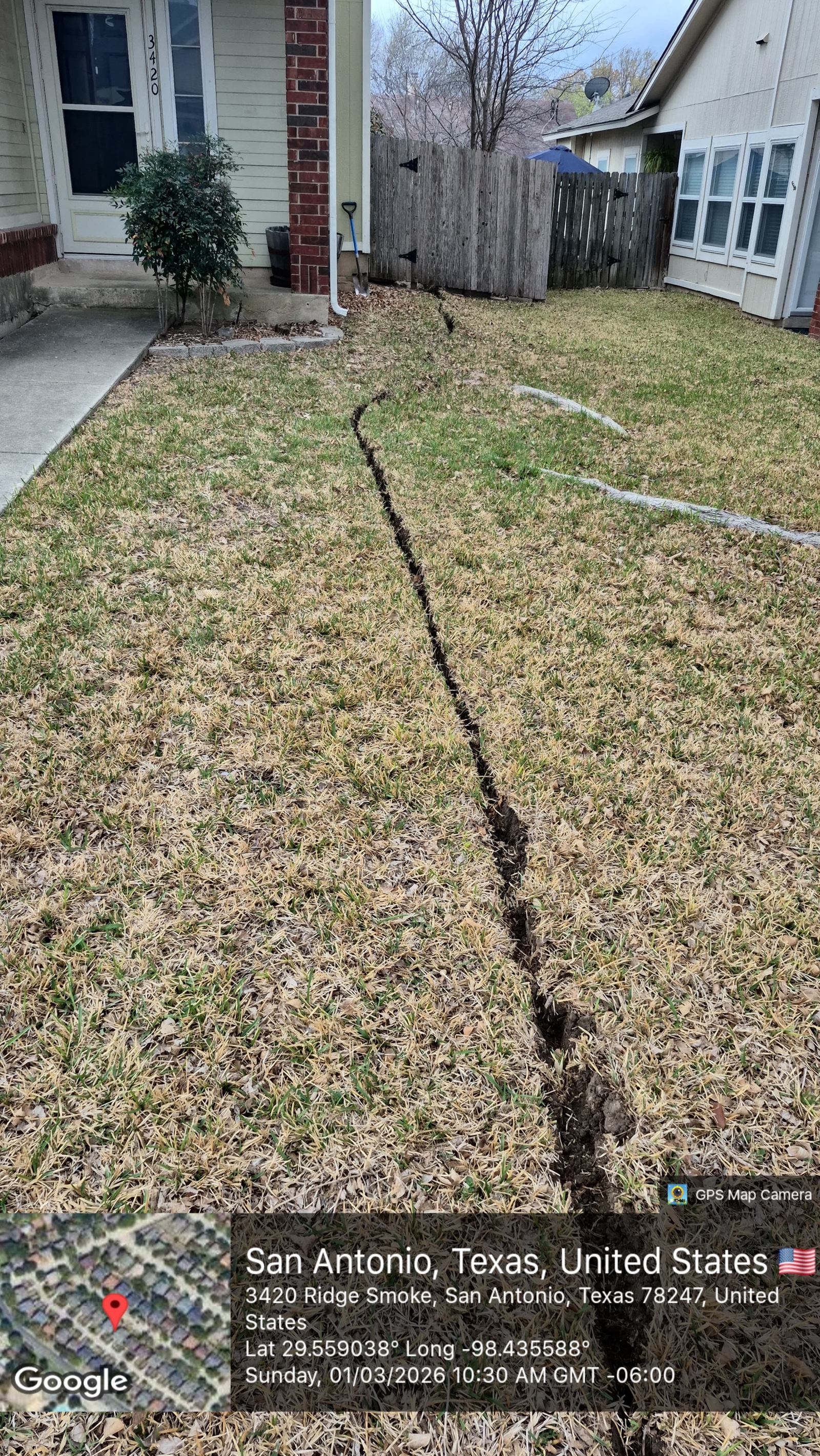

🛣️→🏠 Trench: Street to House

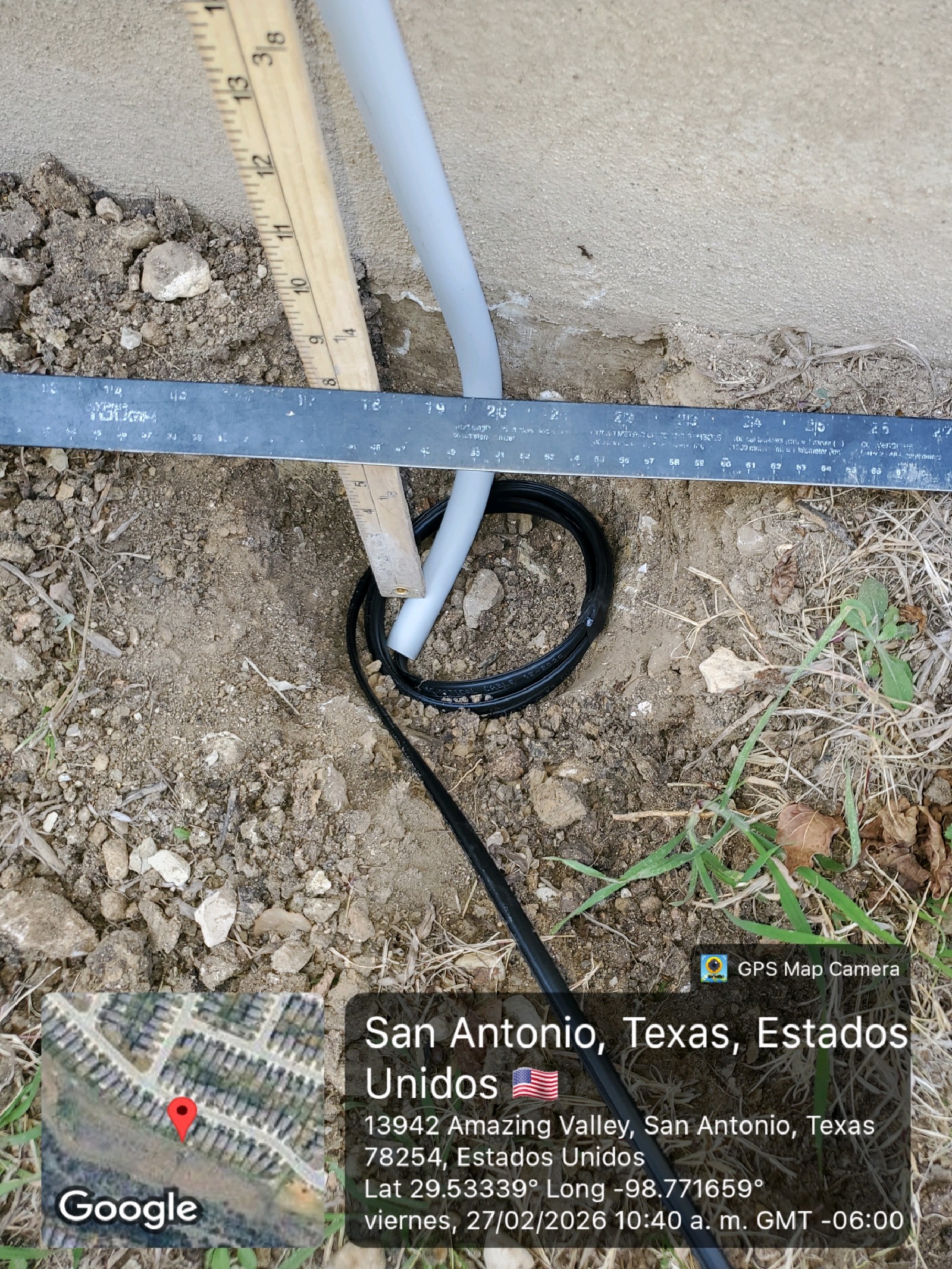

🔄 15ft Service Coil

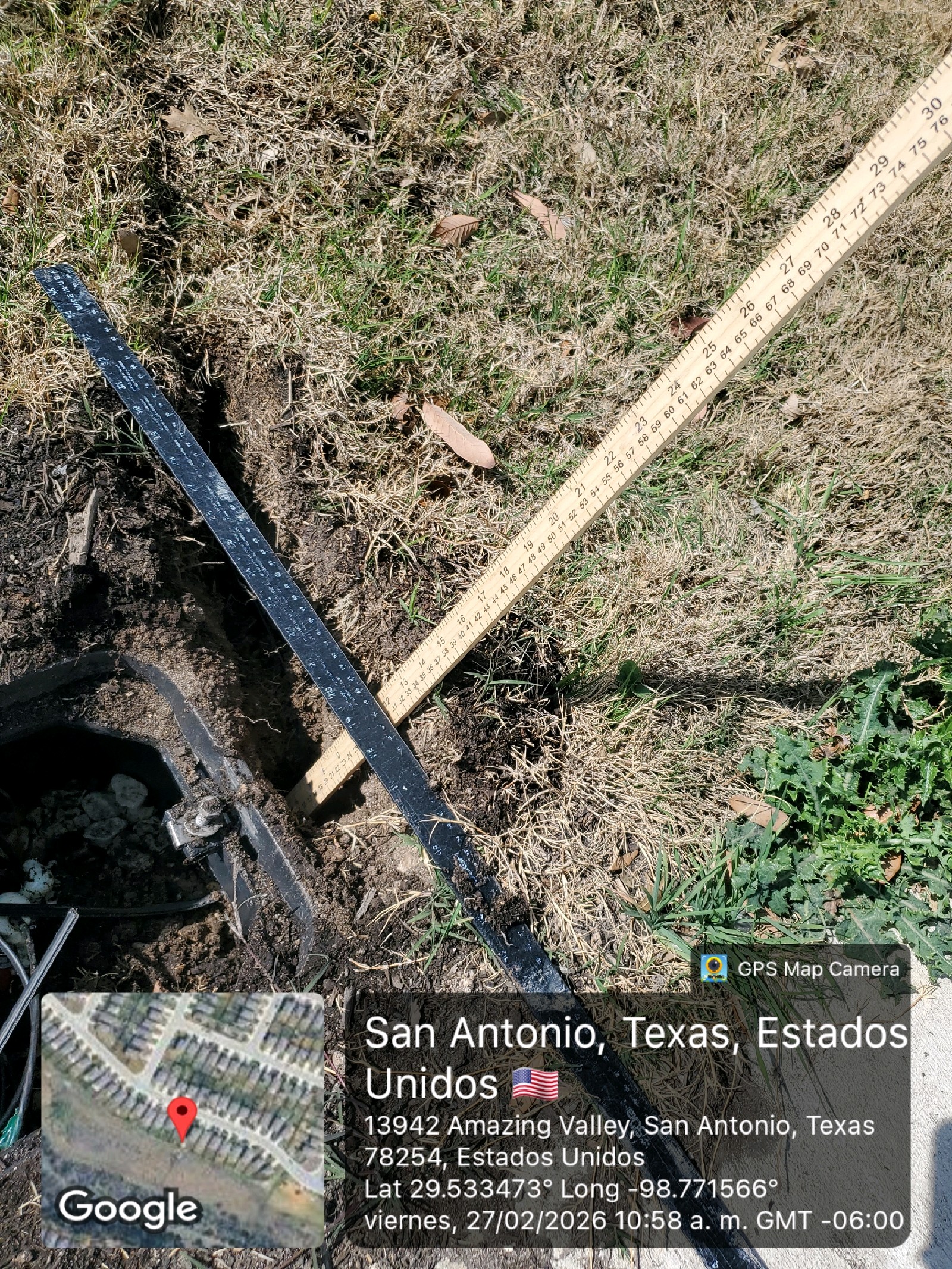

🔲 Vault Entry Depth

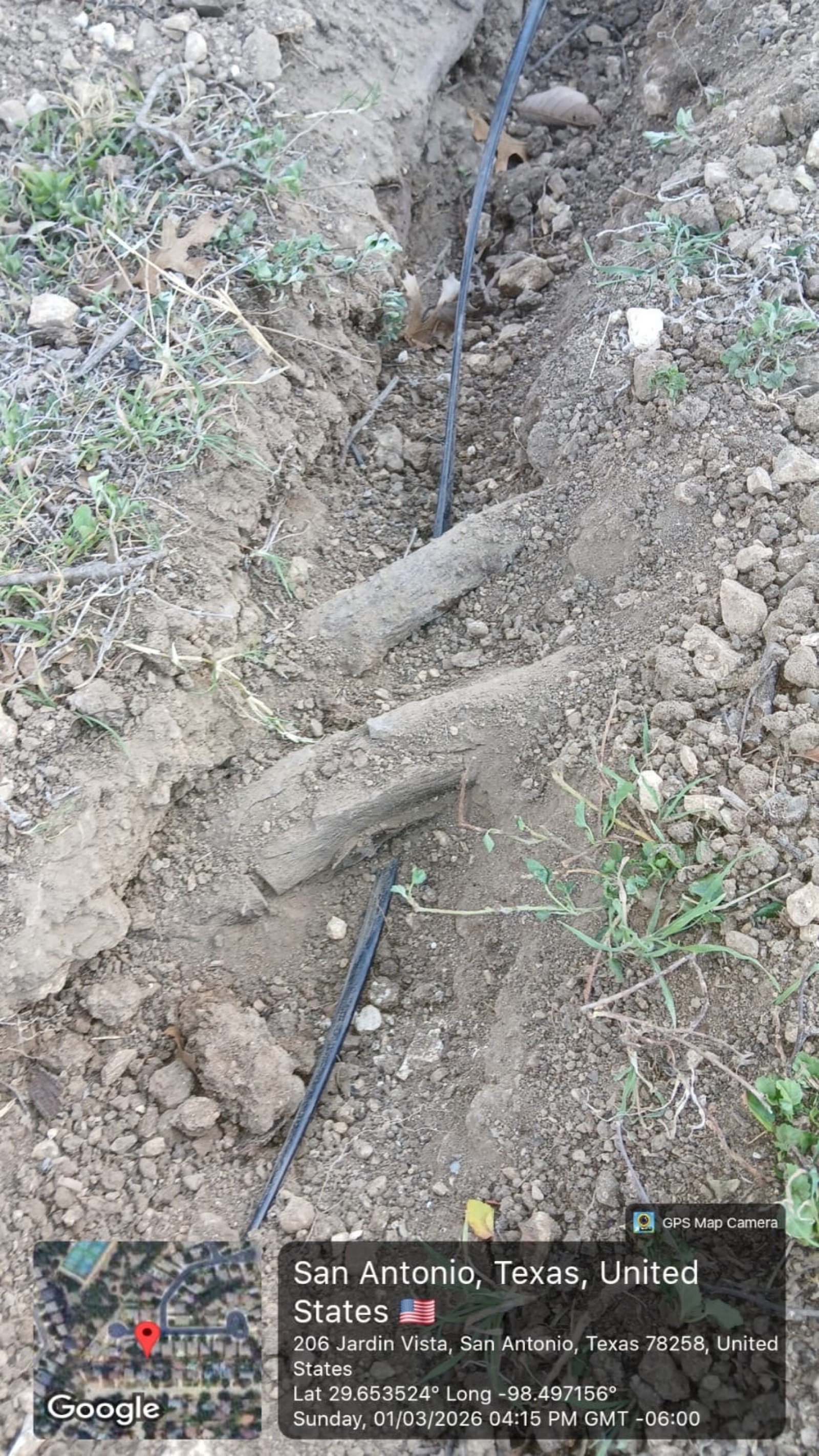

📝 Obstruction Photo #1

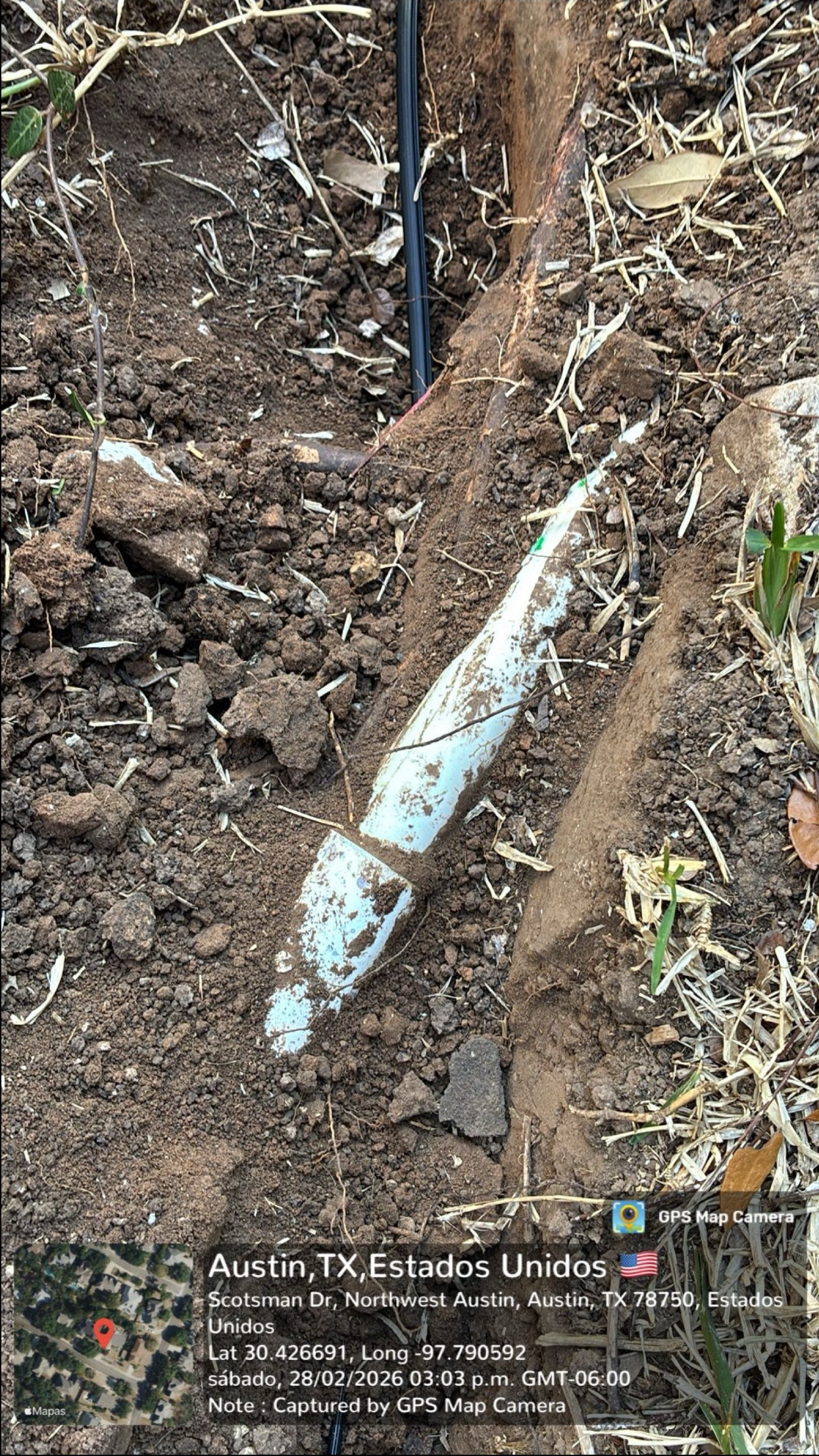

📝 Obstruction Photo #2

3. Hardscape Boring 3 Photos Required

Depth Rule: All hardscape bores must achieve >7" depth on BOTH the entry AND exit sides. Measure from the top of the conduit.

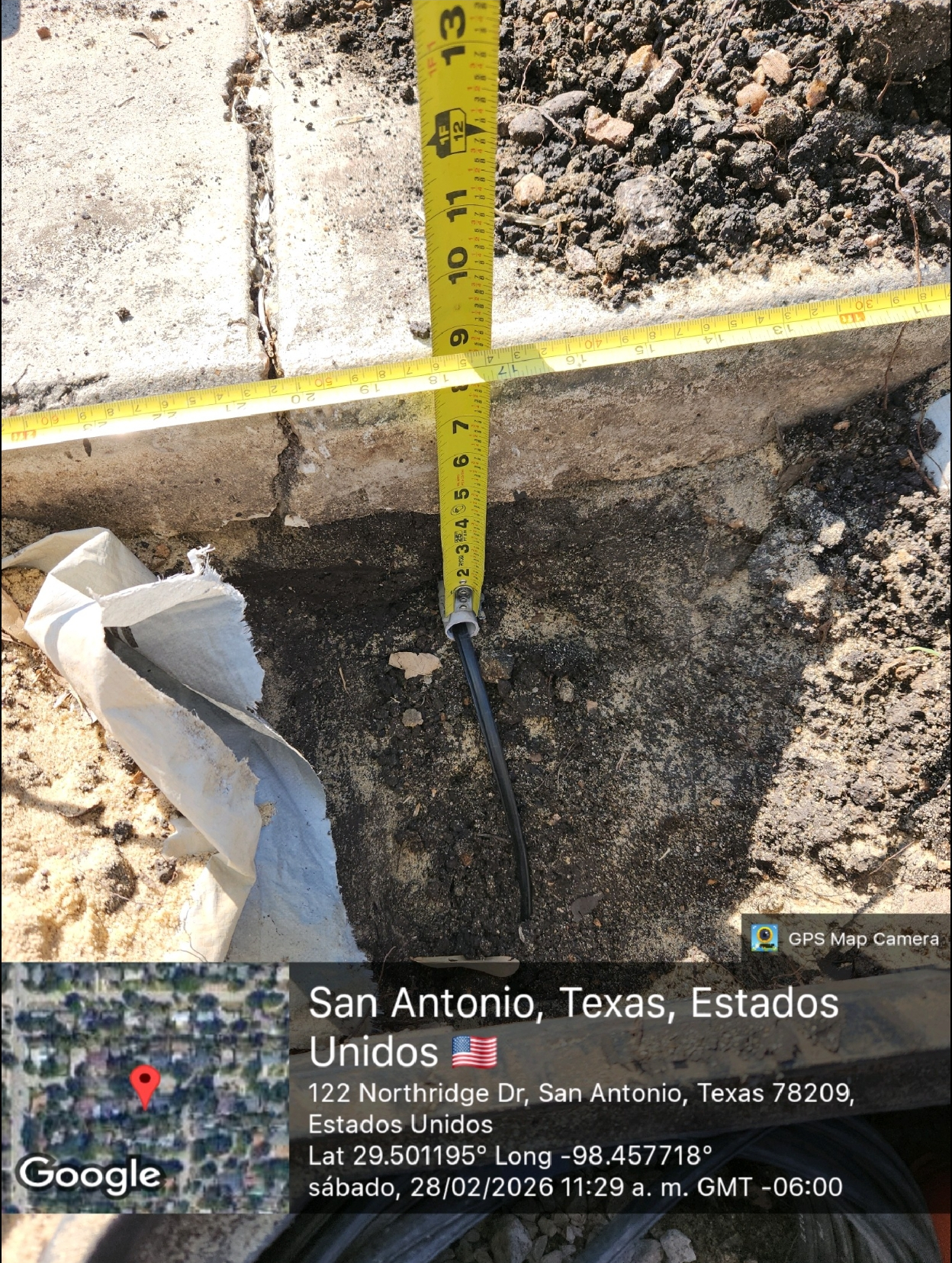

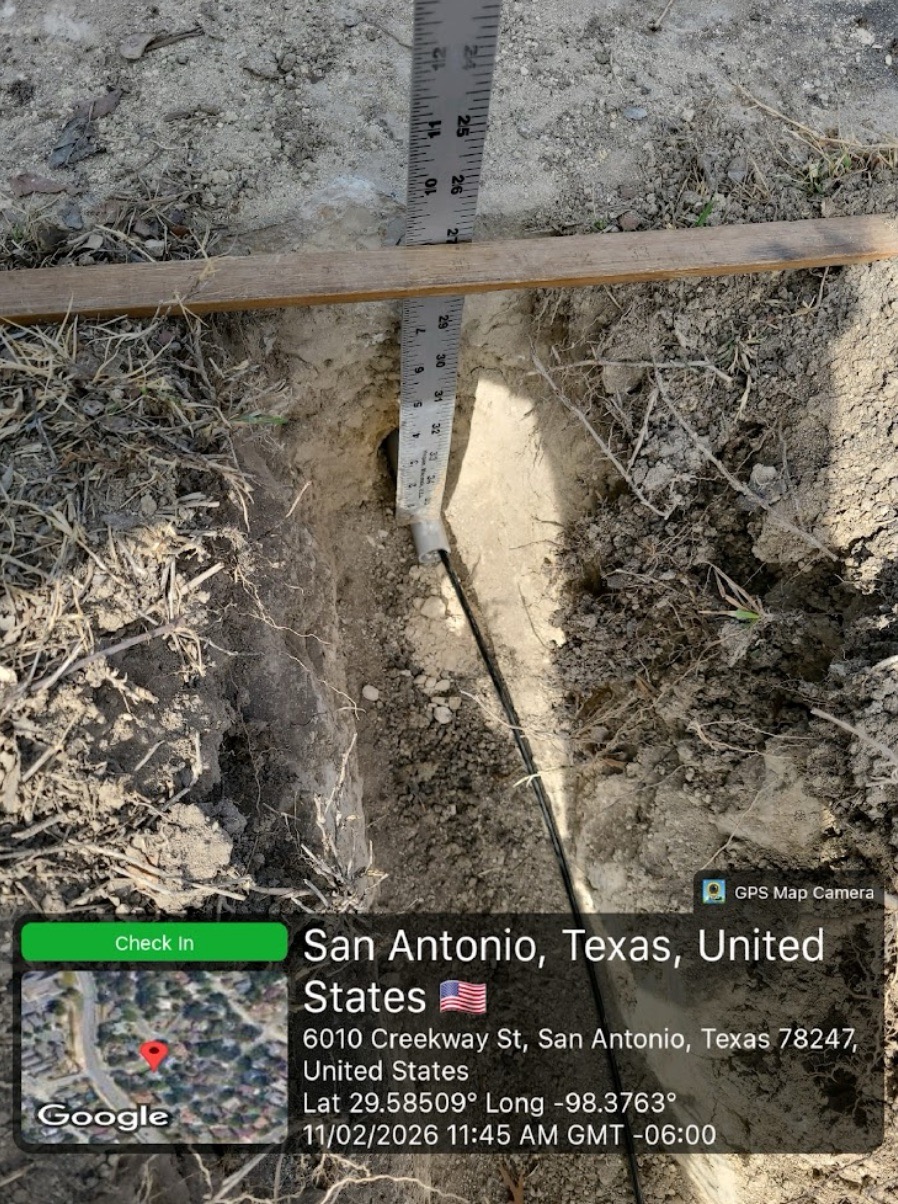

📏 Entry Pit Depth >7"

📏 Exit Pit Depth >7"

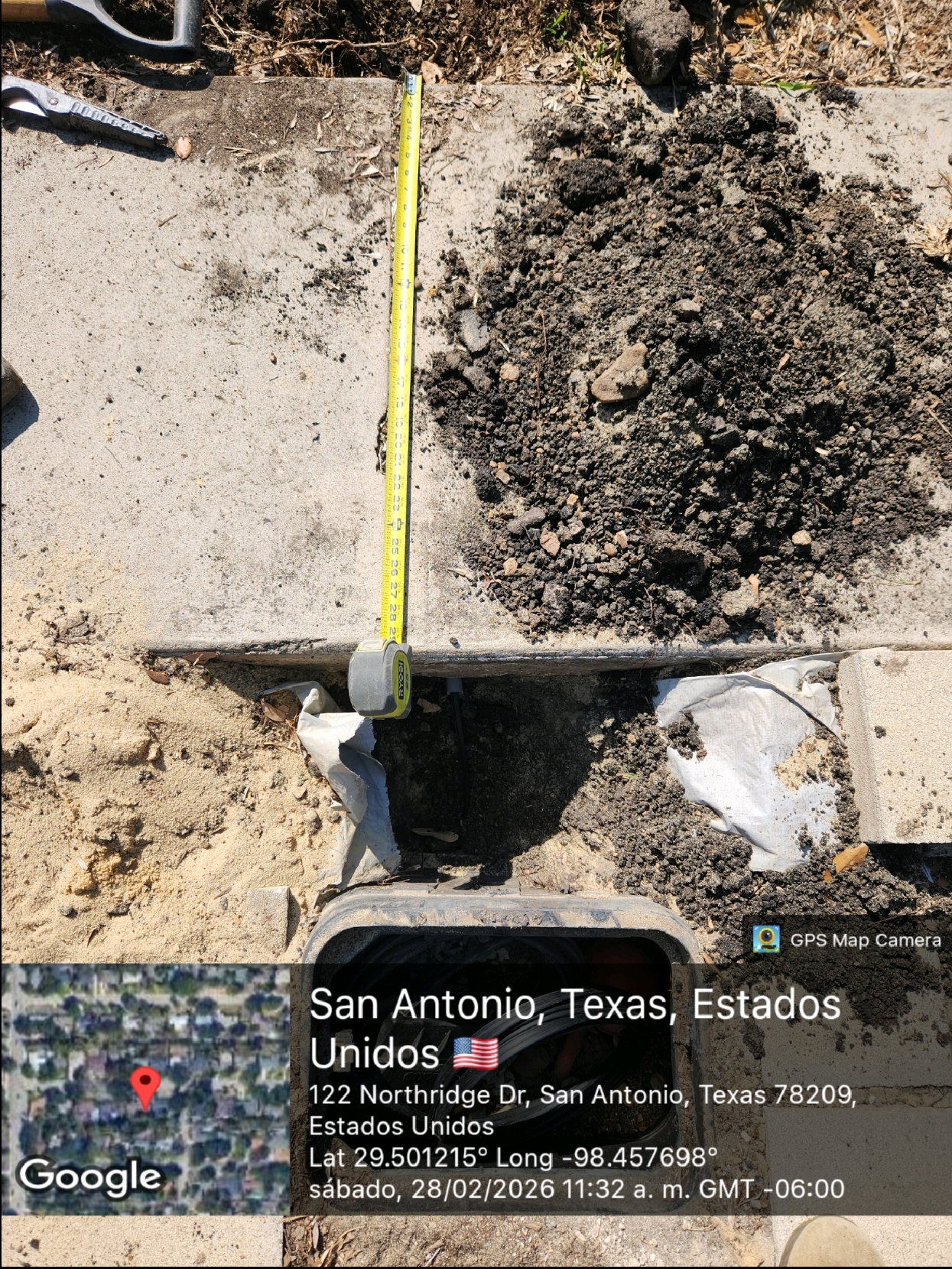

🛣️ Path of Bore Overview

⚠️ REQUIRED TO PASS AUDIT:
• Entry pit depth >7" | Exit pit depth >7"
• Path of bore clearly visible | Conduit used — no direct bore.

4. Boring & Billing Rules

Work Type	App Category	Billing Entry	Photos Required
Sidewalk ≤5'	Hardscape Short	Quantity (Count)	Entry + Exit Depth
Sidewalk >5'	Hardscape Long	Footage (Linear Feet)	Entry + Exit Depth
Driveway	Hardscape Long	Footage (Linear Feet)	Entry + Exit Depth

⚠️ MANDATORY: All bores must use conduit. No billing for pre-existing conduit reuse.

5. Post-Restoration Photos Phase 2 — 3 Photos

Final Verification: Show the riser mounted, the vault interior dressed, and a final site overview.

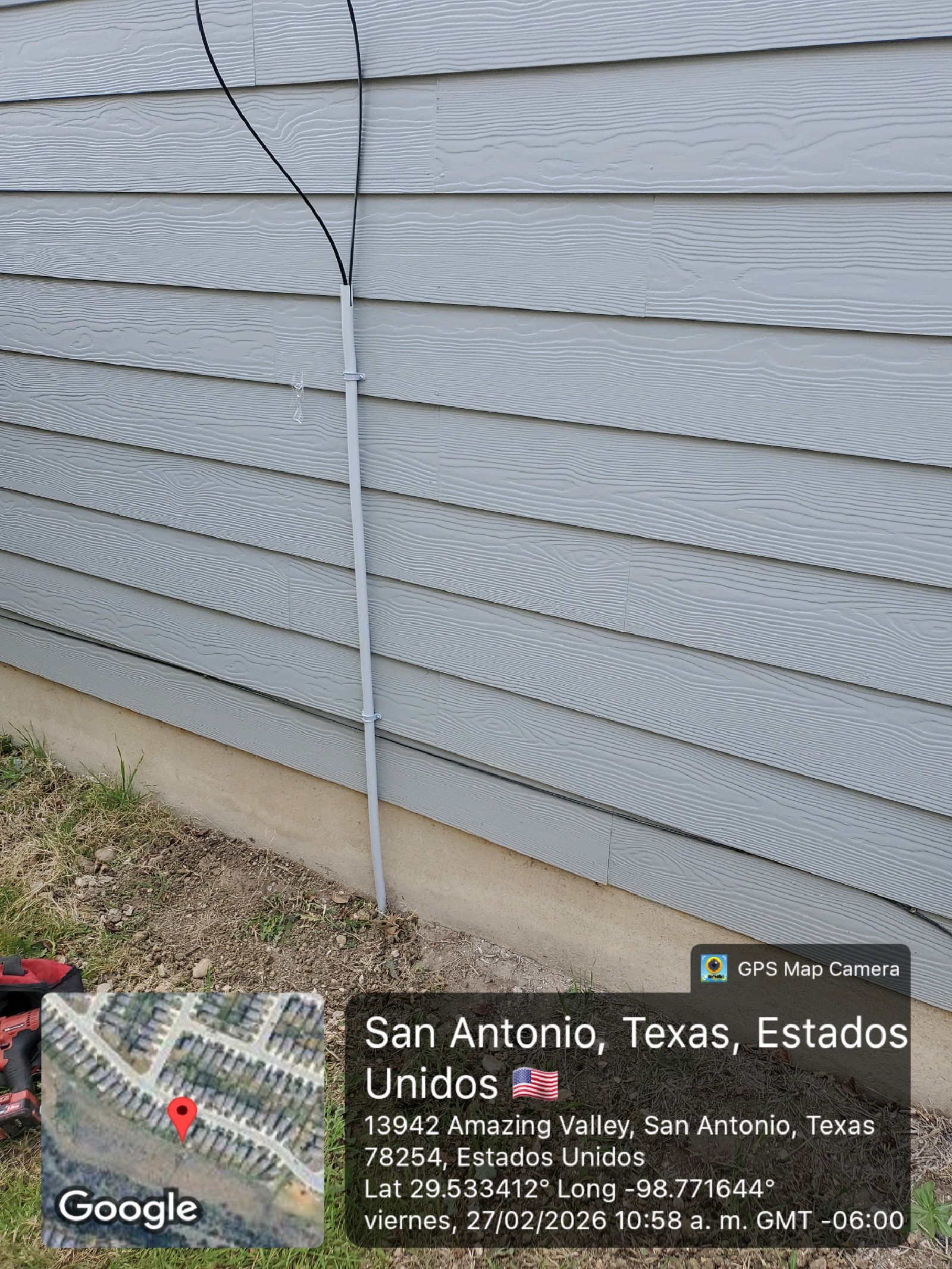

🏠 Riser & Both Clamps Mounted

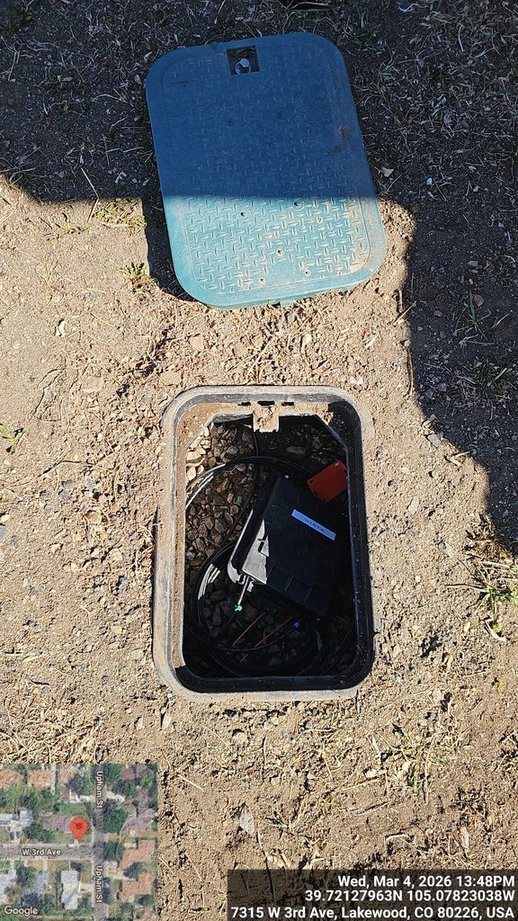

📂 Vault Interior
Coyote facing UP & dressed

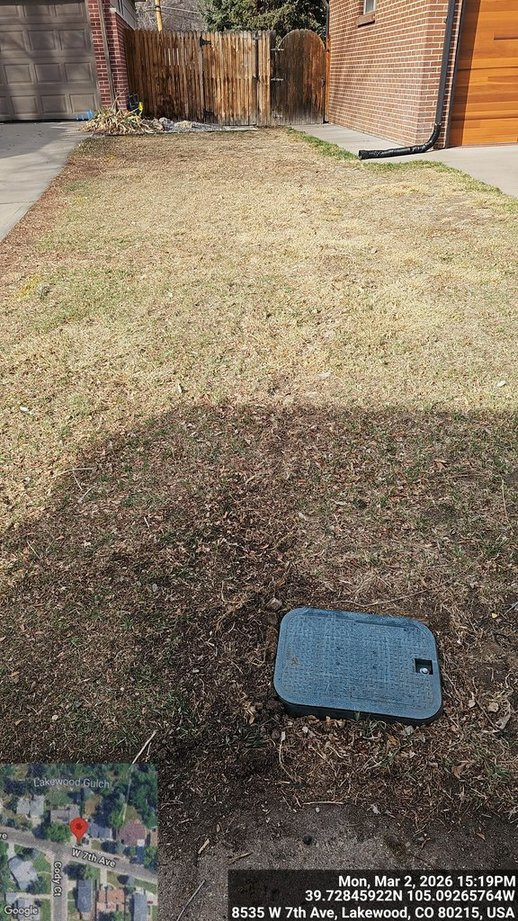

🌐 Final Site Overview

6. Vault Rules Critical

⛔ DO NOT DRILL: Green vaults and Large Concrete vaults must NEVER be drilled.
✅ Grey Concrete: Drilling approved only if depth reaches >7" before entry.

Multiple Vault Routes: On sites with multiple vault routes, always verify and document the path to the FINAL vault.

7. Final Field Checklist

811 locates valid & visible in photos?

Riser ≥18" from Power/Gas? Both clamps mounted?

Depth Photos: Horizontal ruler IN FRONT and touching vertical ruler?

Depth Photos: Minimum 7" from top of fiber/conduit?

Trench direction photos: Both House→Street AND Street→House captured?

Hardscape Bore: Entry AND Exit depth both >7"? Conduit used?

Vault: Coyote splice case facing UP and fiber dressed neatly?

Multi-vault site: Verified and documented path to FINAL vault?

All photos include visible Geo-Data overlay?

Pass vs. Fail Notes

✅ PASS

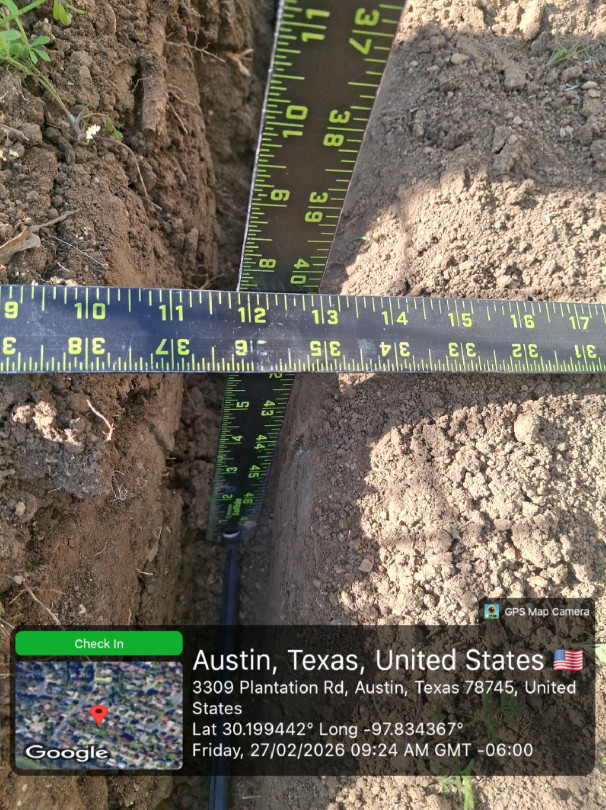

"20–30 ft at 5" due to roots near irrigation line. See Depth Photo #2."

❌ FAIL
"Hit rocks, couldn't get deep." (No distance, no photo reference)
